A 3A USB-C cable can carry up to the current class allowed for ordinary Type-C cable operation, while a 5A cable must provide electronic cable identity that tells the connected USB Power Delivery system it is designed for the higher current. Choosing 5A does not force a device to draw 5A and does not prove data or video performance.
The source, cable and sink set the result together
USB-C power is negotiated as a path. The charger advertises what one port can offer, the device requests a supported contract and the cable communicates relevant identity. The USB-IF maintains the Type-C cable and connector specification; its key practical boundary is that a cable is not a passive wattage sticker when higher current is involved.
At 20V, 3A corresponds to a 60W power ceiling, while 5A allows higher current when the source and sink also support the required contract. Newer EPR operation can use higher voltages, but the same complete-path rule remains. A 240W-marked cable cannot upgrade a 60W charger or make a phone accept more power.
3A and 5A selection matrix
| Question | 3A cable | 5A cable |
|---|---|---|
| When is it sufficient? | When the intended negotiated current stays within the 3A class and all other functions match. | When the intended contract needs more than 3A or the system specification explicitly requires it. |
| Electronic identity | Implementation depends on cable type and functions; do not infer data capability from current alone. | Electronic cable marking is required for the higher-current path. |
| Physical feel | May be slimmer, but appearance is not a rating test. | May be heavier, but thickness alone does not prove compliant construction. |
| Data and display | Can range from charging-focused to high-speed, depending on the exact cable. | Also separate from current; a 5A cable may still have different data/video capabilities. |
| Best evidence | Clear specification, proper marking and a controlled path test. | Identity readout plus loaded electrical and thermal validation for the finished assembly. |
Do not use wattage as the only filter
The USB-IF’s cable logo guidelines pair power markings with supported data-rate information. That separation is important: charging, USB data and DisplayPort alternate-mode needs can lead to different cable choices even when the connector shell is identical.
For a charging-only power bank lead, flexibility and length may matter most. For a dock, display or storage device, lane configuration and data rate can be decisive. For an EPR laptop, the required power range, cable identity and connector temperature under sustained load become part of acceptance.
A five-step selection worksheet
- Start with the sink. Record its maximum input profiles and whether it actually requires more than 3A.
- Check the exact source port. Multiport chargers can change output allocation when another device connects.
- Define every cable function. Power, USB data rate, display mode, length, flexibility and connector orientation are separate fields.
- Request identity and construction evidence. Do not accept jacket thickness or a marketplace title as proof.

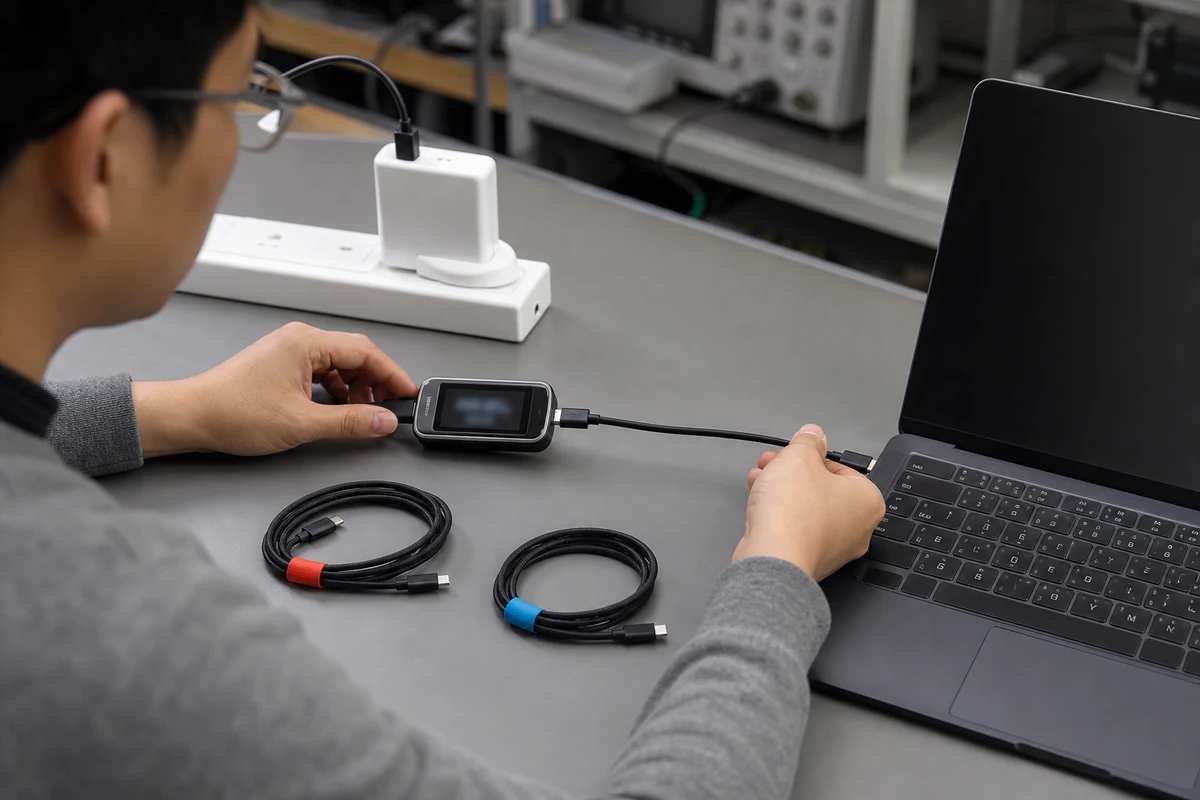

- Validate the finished path. Observe the negotiated contract and connector behavior with the real source and sink.
Common 3A-versus-5A mistakes
- Assuming every thick cable is 5A-capable.
- Assuming every 5A cable supports high-speed data or video.
- Reading charger total wattage as the output of the tested port.
- Using an e-marker readout as a substitute for loaded connector and voltage-drop checks.
- Buying 5A to fix a damaged or contaminated device receptacle.
- Ignoring cable length and installed bend or strain.
Choose the least complicated cable that meets the full requirement
A 5A cable provides useful headroom only when the complete power path calls for it. Otherwise, select by the functions the system actually uses. Read the existing USB-C e-marker guide for identity mechanics, then review the USB-C to USB-C cable category with a source-cable-sink acceptance checklist.
