HDMI Display Stream Compression reduces the video data that must cross a compatible link, while uncompressed transport sends the selected pixel stream without DSC. DSC is encoded and decoded by compatible endpoints; it is not a feature that a cable can add. A working mode therefore depends on the source, display path, firmware or driver, negotiated link and cable together.
DSC and uncompressed video solve different bandwidth problems
Resolution, refresh rate, color depth and chroma format determine how much video data a mode creates. When that stream fits within the available link, it can be sent uncompressed. When a supported mode would otherwise exceed the practical transport budget, compatible endpoints may use DSC to reduce the data rate before transmission.
VESA describes DSC as a low-latency codec designed for visually lossless display transport. “Visually lossless” is the correct boundary: compression is applied, but the design goal is that the result is not visually distinguishable under the defined evaluation approach. It should not be rewritten as mathematically lossless.
| Decision point | Uncompressed transport | DSC transport |
|---|---|---|
| Pixel stream | Sent without DSC encoding | Encoded before the display link and decoded after reception |
| Endpoint requirement | Source and display must support the selected uncompressed mode | Source and display path must also support a compatible DSC mode |
| Transport demand | Uses the full data rate of the selected pixel format | Reduces the amount of video data carried by the link |
| Cable role | Carries the negotiated HDMI link | Still carries the negotiated HDMI link; it does not encode or decode DSC |
| Diagnostic clue | A lower-bandwidth uncompressed mode can establish a baseline | Failure only in a DSC-dependent mode points to an endpoint, negotiation, firmware or link-chain question |
Where DSC sits in the source-to-display path

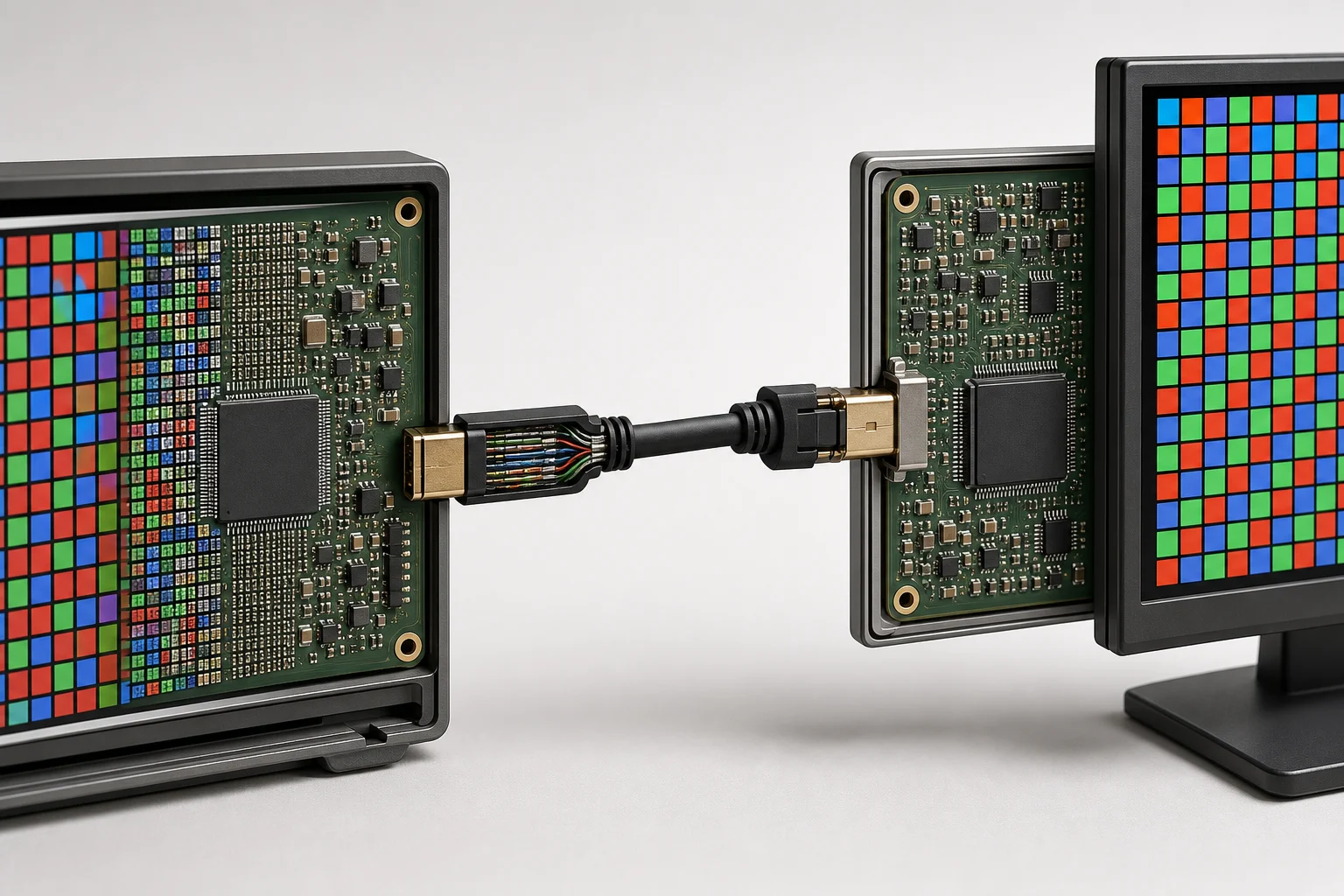

The source creates the video stream and, when the chosen mode and implementation call for DSC, encodes it before transport. The HDMI link then carries that encoded stream. A compatible receiver and display pipeline decode it before the pixels are presented. This sequence separates three responsibilities: creating the mode, transporting the data and reconstructing the image.
That separation explains why replacing only the cable may not change the result. A cable can have insufficient link margin, especially in a demanding installation, but it cannot make an unsupported graphics output or display input understand DSC. Likewise, endpoint support cannot compensate for a damaged connector or an unsuitable cable run.
How DSC differs from FRL and TMDS
DSC describes the state of the video stream. FRL and TMDS describe HDMI link transport. They can interact in a real system, but they are not interchangeable labels. The HDMI FRL versus TMDS guide owns the link-mode question; this article owns whether compression is applied before that transport and which endpoints must support it.
Keeping those layers separate prevents two common mistakes: treating “HDMI 2.1” as a promise that every optional feature is present, and treating a cable label as proof that a particular source-display mode will negotiate. The exact product documentation for both endpoints remains decisive.
A practical compatibility checklist
- Source capability: verify that the exact GPU, console, dock or adapter supports the desired output mode and DSC path.
- Display input: confirm that the exact port—not only the display model family—accepts the same mode and DSC behavior.
- Firmware and driver: record versions because the advertised hardware path still depends on implementation.
- Intermediate equipment: receivers, switches, capture devices and adapters must pass or process the required mode.
- Cable and installation: define cable category, length, routing, connector condition and whether the run includes any couplers.
Diagnose high-bandwidth failures one variable at a time
Begin with a mode that is known to fit comfortably and confirm a stable direct connection. Then raise one variable at a time: refresh rate, resolution, color depth, chroma format or HDR. Record the first transition that fails. This creates a reproducible boundary instead of a vague “black screen at high settings” report.
- Connect the source directly to the intended display input with one cable.
- Confirm a stable lower-bandwidth baseline and record the exact mode.
- Verify the source and display documentation for the target mode and DSC support.
- Change one video parameter, then retest long enough to detect dropouts rather than only initial lock.
- Compare one known-good cable of suitable category and length without changing the endpoints.
- Reintroduce switches, receivers or adapters individually after the direct path is stable.
If a lower mode is stable but a higher mode fails, the result identifies a system boundary; it does not yet identify the guilty component. Endpoint capability, negotiation, firmware, intermediate devices and physical-link margin still need to be separated.
What to specify when sourcing an HDMI cable
A useful cable request names the source, destination, required video mode, color format, refresh rate, HDR requirement, length and installation conditions. It also states whether intermediate equipment is present and how the finished path will be accepted. “Supports DSC” should not be used as a cable-only shortcut because the encode and decode functions live in the endpoints.
After the system requirement is fixed, ChargeKeku’s HDMI and USB-C video cable category provides the narrowest truthful route for discussing a matching cable. Exact compatibility still needs the source-display chain and the intended run to be verified.
