TMDS is the established HDMI transport used by earlier link modes, while FRL is the fixed-rate multi-lane transport introduced for higher-bandwidth HDMI features. FRL does not automatically start because a cable or port is described as “HDMI 2.1.” The source, every active intermediary, the display and the cable path must establish a mutually supported mode.
The practical difference is the transport, not the connector
The familiar full-size HDMI connector can carry different link modes. TMDS sends three data channels plus a clock channel. FRL distributes data across multiple fixed-rate lanes and uses link training so the transmitter and receiver can establish a usable rate. The HDMI Licensing Administrator’s bandwidth overview describes FRL as the higher-bandwidth transport while retaining TMDS support for backward compatibility.
That distinction matters when a setup works at one format but fails at another. A 4K image at a conservative refresh rate may fit a TMDS mode, while a higher refresh rate, greater bit depth or different chroma format may require FRL. The connector looks the same, yet the link behavior and margin are different.
FRL and TMDS compared
| Decision point | TMDS | FRL |
|---|---|---|
| Typical role | Backward-compatible transport for established HDMI formats. | Higher-bandwidth transport for supported newer formats. |
| Link start | Uses a dedicated clock channel with the selected pixel transport. | Trains a multi-lane fixed-rate link before stable video transport. |
| Fallback | May remain available when the source and sink cannot establish FRL. | Requires every active device in the path to support and complete the intended FRL mode. |
| Cable implication | A working lower-demand mode does not prove margin for a higher mode. | The installed cable must pass the complete target configuration; a label alone is not the result. |
| Troubleshooting clue | Image may work at a lower refresh rate or bit depth. | Failure can appear during training or only at the target lane rate. |
“HDMI 2.1” does not list the enabled features
HDMI specifications define a collection of capabilities rather than one compulsory consumer feature bundle. The official HDMI feature-labeling explanation notes that equipment marketed under a specification version can implement different features. For a real purchase, ask for the exact supported resolutions, refresh rates, color formats, HDR modes and verification conditions.
A cable also does not generate FRL. It provides the physical path. The source chooses an output, the sink accepts it and any receiver, switch, splitter, extender or capture device in between must handle that same mode. One non-FRL intermediary can change the effective capability of the chain.
Use a mode ladder to find the boundary

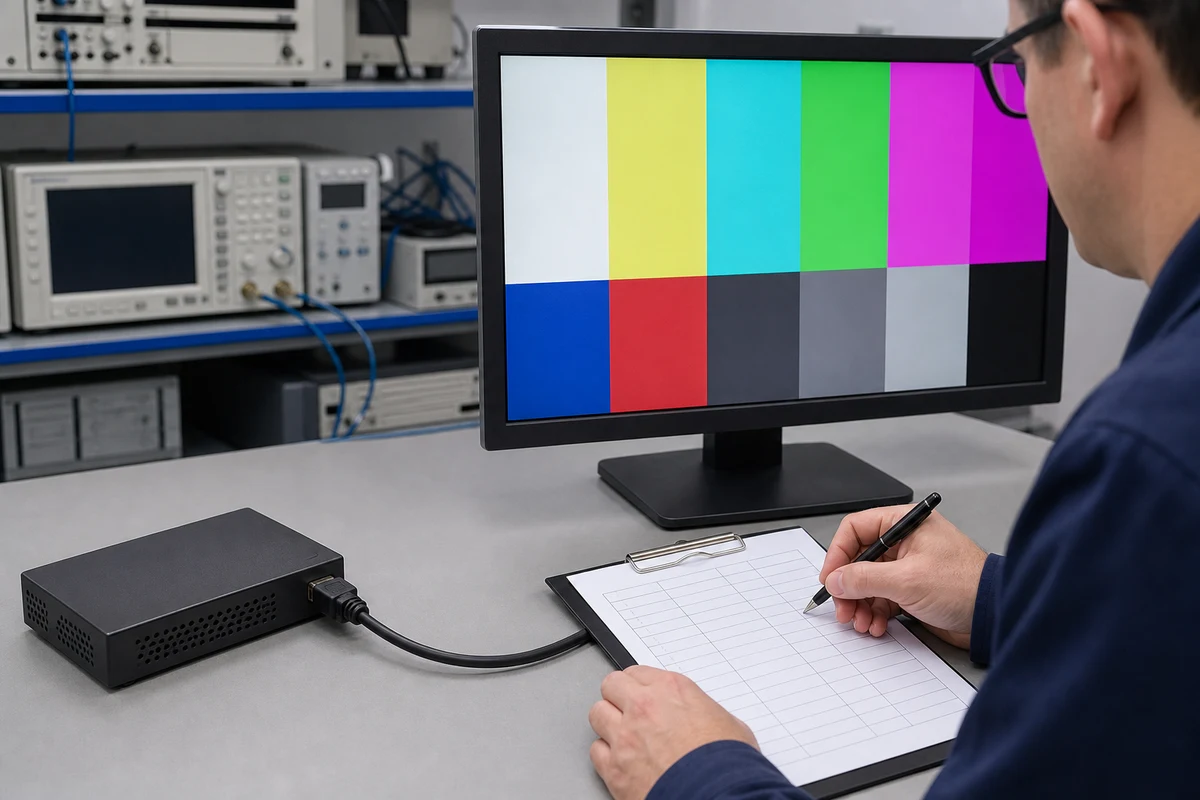

- Connect the source directly to the display with the shortest known-good path available.
- Record the exact input, source firmware and display input setting.
- Start with a conservative resolution and refresh rate that produces a stable image.
- Increase only one variable: refresh rate, bit depth, chroma format or HDR state.
- When the first failure appears, return to the last stable mode and repeat it.
- Add the receiver, switch or adapter back one item at a time.
- Repeat with the intended cable length and routing, then allow the equipment to warm up.
Symptoms that suggest a transport boundary
- The same path works at a lower refresh rate but not the target rate.
- A direct connection works, but the signal fails when an intermediary returns.
- The image appears after a fallback setting but the requested mode is missing.
- Dropouts start after warm-up, movement or a tighter installed bend.
- One display input works because it is configured differently from another.
These symptoms identify a boundary, not a guilty component. Use the existing HDMI handshake guide when EDID, HDCP or source-detection behavior is the primary problem.
Specify the mode before choosing the cable
Write the requirement as a complete path: source model and port, display input, intermediaries, resolution, refresh rate, bit depth, chroma/HDR state, length and installation constraints. Then review the HDMI and USB-C video cable category. Treat a product description as a candidate specification; acceptance is a repeatable pass in the intended installed configuration.
