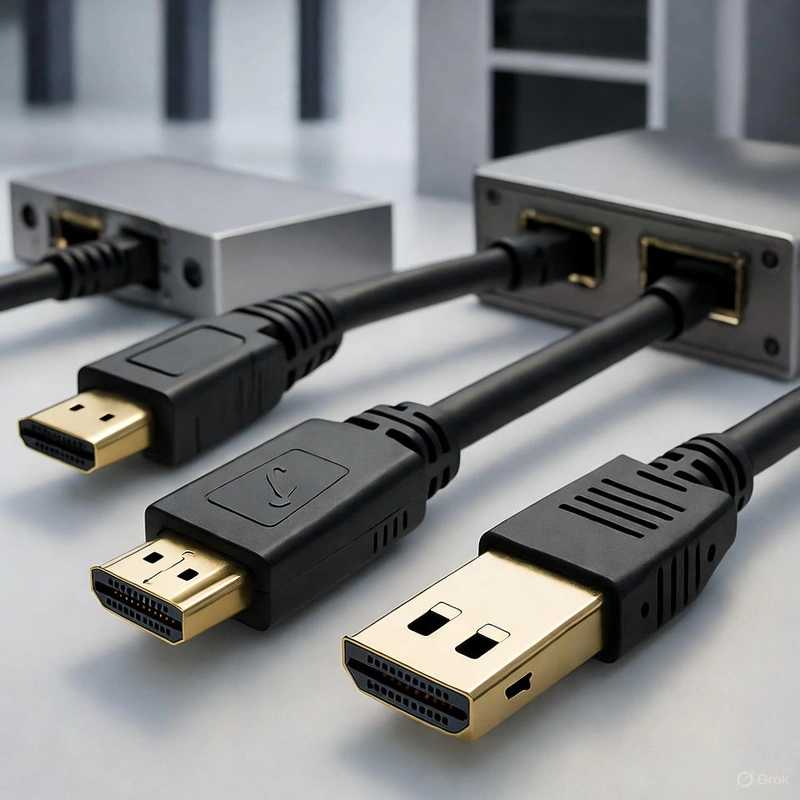

An HDMI source connected to a DisplayPort monitor normally needs an active, direction-specific HDMI-to-DisplayPort converter. A common DisplayPort-to-HDMI cable works in the opposite direction and is not reversible. Before buying, confirm the source is HDMI output, the display is DisplayPort input, the converter supports the exact resolution and refresh rate, and any required USB power is available.
Start with Source Output and Display Input
| Source | Display | Typical path |
|---|---|---|
| HDMI output | DisplayPort input | Active HDMI-to-DisplayPort converter, often with USB power |
| DisplayPort output | HDMI input | DisplayPort-to-HDMI adapter/cable supported by the source |
| USB-C output | DisplayPort input | Requires documented DisplayPort Alt Mode or another supported video path |
VESA explains that DisplayPort source devices can power and detect adapters for HDMI displays. That does not make the reverse HDMI-source path passive. For DisplayPort output to HDMI input, use the separate DisplayPort-to-HDMI guide.
For a related direction and endpoint-compatibility check, see HDMI Coupler Guide: Extension Limits, Setup and Testing.
Specify More Than Connector Names
The converted result is limited by the HDMI source output, converter electronics, DisplayPort input, display settings and any cable segment. Record the complete target mode:
- resolution and refresh rate;
- color depth and HDR requirement;
- audio requirement and destination;
- HDCP requirement for the exact content workflow;
- converter input/output connector and cable length;
- power source required by the converter.
Do not infer 4K, 8K, HDR or a gaming refresh rate from the words “HDMI to DisplayPort.” Those are exact-model capabilities that need a supported mode table. A converter may support one 4K mode while failing another refresh, color or protected-content combination.
Connect and Power the Converter in Order
- Turn off the source and display for the first baseline connection.
- Connect the converter’s HDMI input to the HDMI source.
- Connect its DisplayPort output to the monitor using the required cable or integrated lead.
- Attach USB power if the converter documentation requires it; a nearby data-only USB port may still supply power, but use the specified rating.
- Select the monitor’s DisplayPort input, then power the display and source.
- Start at a documented baseline mode before enabling higher refresh, HDR or protected content.
Fix No Signal, Flicker or a Low Resolution
- No signal: confirm the adapter direction printed on the device; many failures are a reversed passive cable.
- Intermittent image: provide the required USB power and remove docks, switches and extensions.
- Low resolution: select a mode shared by the source, converter and monitor; then increase one variable at a time.
- No audio: verify that the converter carries audio and that the monitor exposes an audio output or speakers.
- Protected content fails: verify the exact HDCP path and application requirements rather than assuming every converter is equivalent.
The broader DisplayPort versus HDMI guide helps when both endpoints offer native ports and conversion may be avoidable.
