To test a USB-C cable, check charging, data and video as separate functions with known-good endpoints, then change only one variable at a time. A cable that charges a phone has not automatically passed data, display or high-power testing. The same connector shape can hide very different internal wiring and rated capabilities.
The goal is not to make one tester produce a universal “good cable” verdict. The goal is to answer a defined question with a controlled setup, record the exact host, charger, device and mode, and stop before a damaged or hot cable becomes a safety problem.
Define what the cable must do before testing it
Write the expected job in measurable terms. For charging, note the target device and charger. For data, note the port and storage device. For video, note the host port, dock if used, display input, resolution and refresh rate. This prevents a limited pass from being mistaken for proof of a broader claim.
USB-IF now separates cable power and data-performance markings. Certified USB-C to USB-C cables are identified by power capability such as 60W or 240W, while non-USB 2.0 products also use a data-rate marking. Read those as different dimensions. A printed ceiling still needs a compatible charger, host and device to become useful in practice.
| Question | Controlled setup | Useful pass evidence | What the result does not prove |
|---|---|---|---|
| Is the cable physically usable? | Good light, connector inspection and gentle fit check | No bent shell, exposed conductor, looseness, heat damage or intermittent movement | Electrical performance or durability life |
| Does it charge the target device? | Known-good charger and device; compare with a known-good cable | Stable charging and expected negotiation for that exact chain | High-speed data, video or every advertised power mode |
| Does it carry data? | Known-good host and storage device; fixed port and repeatable file set | Stable enumeration, transfer and reconnect behavior | Video support or full protocol certification |
| Does it carry video? | Video-capable host port, known-good display and fixed mode | Stable image, wake and reconnect at the tested mode | Every resolution, refresh rate, dock or alternate-mode path |
| Are the conductors wired correctly? | Purpose-built cable continuity tester | Expected pins present with no detected open or short | Signal integrity, negotiated power, sustained current or protocol compliance |
Build a known-good baseline
Use a host, port, charger and peripheral that already work together. Connect them with a known-good cable and record the result. Then replace only that cable. If you change the dock, charger, port and cable together, a pass or failure cannot tell you which part caused the difference.
A known-good cable is a diagnostic reference, not a permanent certification instrument. It should have documented capability that covers the workload and should be rechecked if its condition changes. Microsoft’s USB-C troubleshooting guidance similarly distinguishes cable power limits, port capability and device support rather than treating the connector as the answer.
Inspect the cable before applying power
- Check both metal shells for bending, corrosion, debris or looseness.
- Look for cuts, crushed sections, exposed conductors and a strain relief pulling away from the plug.
- Stop using a cable that has melted plastic, discoloration, a burnt smell or unusual heat damage.
- Insert the plug without forcing it. A loose or intermittent fit should not remain in a critical test pool.
Do not open a molded cable or probe energized connector contacts unless you have the equipment and procedure for that work. For ordinary troubleshooting, controlled substitution and purpose-built instruments provide more useful evidence with less risk.
Test charging as a complete power path
Connect the target device to a known-good charger through the cable under test. Observe whether charging starts, remains stable and behaves like the baseline. If an inline meter is appropriate for the setup, it can show negotiated voltage and current for that session. It cannot prove that the cable supports every advertised mode or that it will remain reliable over its service life.
Run a realistic workload long enough to reveal intermittent behavior, while following the device and charger makers’ limits. Stop if the connector or cable becomes unusually hot, the connection repeatedly drops or the cable must be held at an angle. Do not intentionally overload a cable to “find its maximum.”
Test data independently from charging
Keep the host port and data device fixed. Confirm that the device enumerates, disconnects cleanly and reconnects. Then transfer a repeatable file set and compare behavior with the known-good cable. For storage, one quick copy is not enough to establish a speed rating, but repeated errors, disconnects or a large performance gap can identify a practical failure.
If the device charges but never appears, use the step-by-step USB-C charges-but-no-data diagnostic guide. A charging pass only shows that part of the power path works. It does not show that the required data conductors, electronics or signal quality are present.
Test video only on a video-capable path
First verify that the host USB-C port supports the intended display path. Then use a known-good monitor, input and cable at a conservative mode. Once stable, test the required resolution, refresh rate, wake behavior and reconnect behavior. If a dock is involved, compare direct and docked paths separately.
Apple provides a useful first-party example of why the connector is not enough: its USB-C charge cable and Thunderbolt 3 USB-C cable have different data and video capabilities even though both can charge. A failed monitor test therefore needs a capability check before it is called a damaged cable.
Understand what common cable testers can and cannot prove

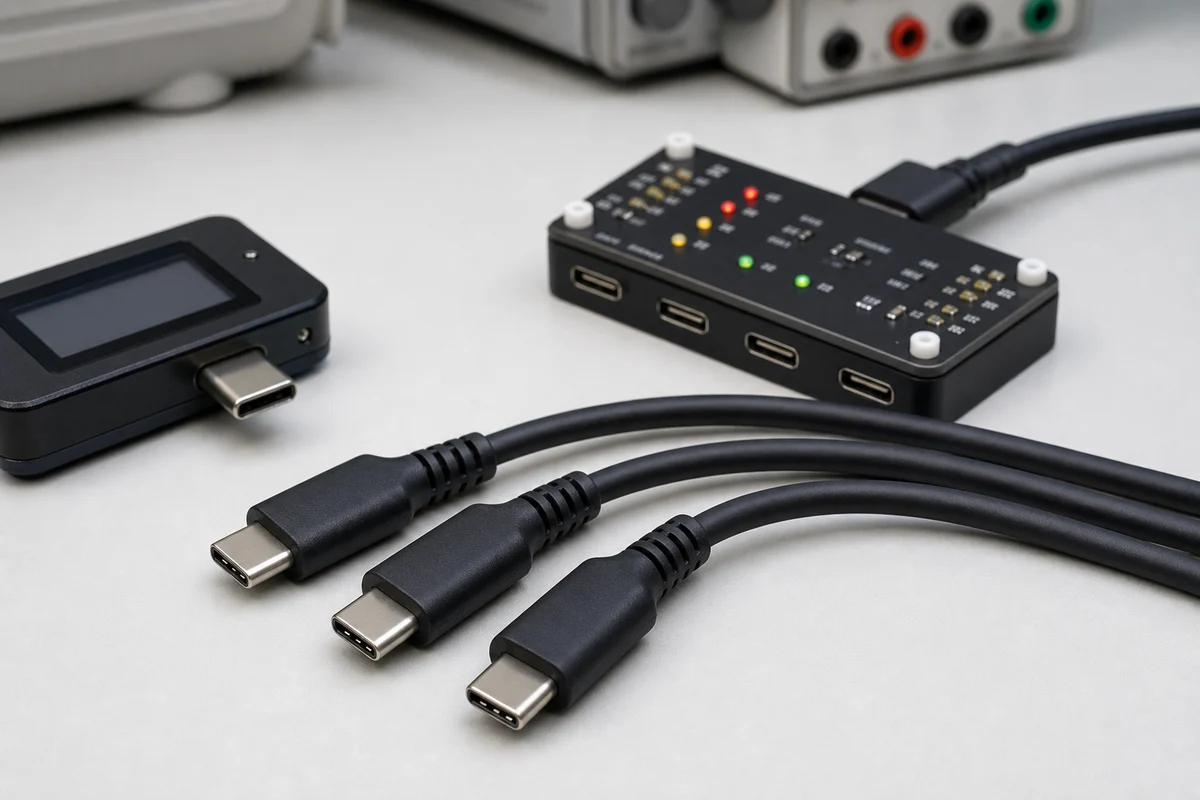

A simple continuity board can reveal missing conductors, unexpected connections or an open circuit. A more capable analyzer may read cable identity information or exercise particular protocols. Neither result should be stretched beyond the instrument, fixture and procedure used.
Independent cable testing published by PCWorld uses different equipment for conductor resistance, cable identity and data performance. That separation is the key lesson: continuity is not signal-integrity certification, a power-meter reading is not a data-rate test, and a successful file copy is not proof of every USB or display mode.
Interpret symptoms with a one-variable workflow
| Observed symptom | First controlled check | Likely interpretation if a known-good cable passes |
|---|---|---|
| Charges, but the device never appears | Keep host, port and device fixed; swap only the cable | The original cable may lack the required data path or may have a data-conductor fault |
| Slow or unstable charging | Use a known-good charger, device and rated comparison cable | The cable may have excess resistance, a damaged connector or insufficient power capability |
| Storage disconnects under load | Repeat the same transfer through the same port with a short known-good cable | The original cable may have marginal signal integrity or connector fit |
| Display works only at a lower mode | Fix the host and monitor; compare cable and dock separately | The original cable or another link may not sustain the requested mode |
| Works in one plug orientation only | Reverse each end separately and inspect the connectors | A contact, conductor or connector fault is plausible; retire the cable from critical use |
| Fails on every known-good setup | Inspect, then repeat with one verified baseline | The cable is a strong failure candidate and should not remain in the approved pool |
Repeat a failure before making a purchasing decision. A single disconnect can come from software, a dirty port, a dock, a power limit or the peripheral itself. A result becomes much stronger when the same system passes with a documented comparison cable and fails again when the original cable is restored.
Create an acceptance test for purchasing
For a small order, test representative samples against the actual workload. For a production or fleet purchase, define sample count, cable length, required markings, host and device models, charger, transfer file, display mode, test duration and rejection conditions before samples arrive.
A purchasing test should preserve the exact cable identity and workload instead of collapsing all results into “USB-C passed.” Record charging behavior, data enumeration and transfer, display behavior, orientation checks and physical condition as separate fields. If a supplier changes conductor construction, connector, electronics, length or rated capability, require a new review.
Know when to retire the cable
Remove a cable from service if it has exposed conductors, heat damage, a loose connector, orientation-dependent operation, repeated disconnects or a failure that follows it across known-good setups. Do not send an intermittent cable back into a shared drawer where the same fault will be diagnosed again.
When selecting replacements, compare documented products in the USB-C to USB-C cable category, then verify the exact model and workload. A category listing is a discovery path, not proof that every cable has the same charging, data or display capability.
Bottom line
A dependable USB-C cable test is a matrix, not a single light. Inspect first, establish a known-good baseline, test charging, data and video independently, and keep the result tied to the exact equipment and mode. That workflow finds practical faults without inventing certification or assuming that one successful feature proves all the others.
