To connect yellow, red and white RCA outputs to an HDMI-only display, use a powered composite-AV-to-HDMI converter. A passive cable cannot translate analogue composite video and audio into digital HDMI. Confirm the direction on the converter, the source’s PAL or NTSC format, the HDMI output mode and how the display handles a 4:3 image before buying.
Confirm RCA Input to HDMI Output
The yellow plug carries composite video; red and white carry right and left analogue audio. HDMI carries digital video and audio. The required device therefore has composite AV inputs and an HDMI output, plus power for conversion. A converter labelled HDMI input and AV output works in the opposite direction and is covered by the HDMI-to-RCA converter guide.
Match the Legacy Source and HDMI Display
| Check | Why it matters |
|---|---|
| Composite RCA, not component video | Yellow composite is one video signal; red/green/blue component uses a different input system |
| PAL or NTSC setting | A mismatch can produce no picture, unstable video or incorrect color |
| Converter HDMI output mode | The display must accept the converter’s selected output |
| 4:3 versus 16:9 handling | Upscaling does not restore widescreen detail; the display may need an aspect setting |
| Power input | The active converter normally needs its specified USB or DC power |
If the legacy source uses component video instead of yellow composite, select the correct active device and use the HDMI/component conversion guide to keep direction and connector roles separate.

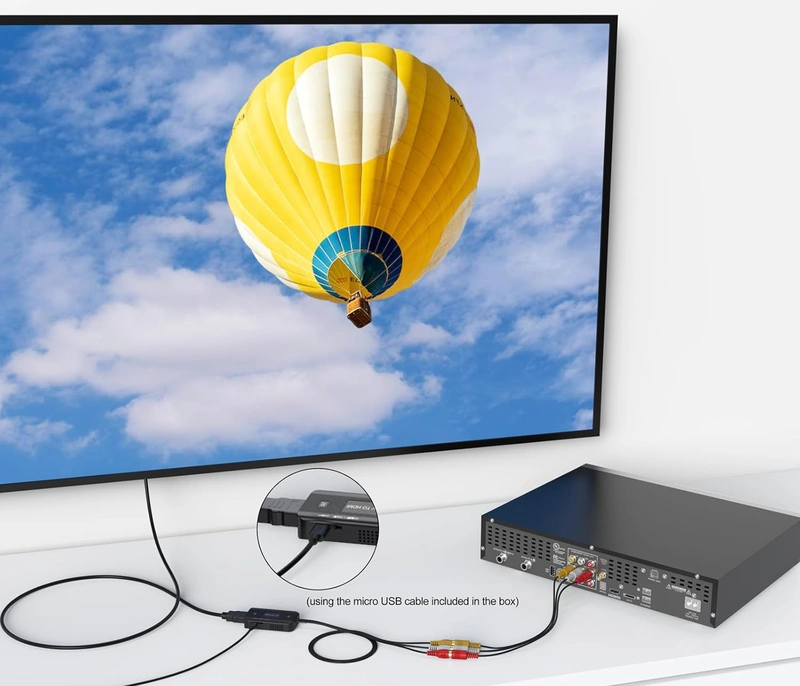

Connect the Converter in a Controlled Order
- Power off the source and display.
- Connect yellow video and the red/white audio plugs to the matching converter inputs.
- Connect the converter’s HDMI output to the display.
- Set PAL/NTSC and the available HDMI output mode before hiding the converter.
- Apply the specified power, select the display’s HDMI input, then start the source.
Fix No Picture, Black-and-White Video or Missing Sound
- No picture: confirm converter direction, power, display input and the HDMI output setting.
- Black-and-white or rolling video: switch the converter between PAL and NTSC to match the source.
- Picture without sound: reseat both red and white plugs and check the source volume/output.
- Image is stretched: select the appropriate aspect mode on the display.
- Intermittent result: test the source, RCA lead, converter, HDMI cable and display one layer at a time.
Conversion Preserves Access, Not Original Detail
A converter can make a working composite source visible on a newer display, but it cannot turn standard-definition analogue material into native high-definition detail. Any stated HDMI output resolution describes the output format, not newly created source information. For archival, medical, security or production use, qualify the exact converter with representative tapes, cameras or players before standardizing it.
