You cannot convert an RF coax signal to HDMI with a passive cable. An RF source—such as a VCR or modulator on channel 3/4—must first be tuned and demodulated, then decoded/scaled into a digital HDMI output. Before buying a converter, identify the signal carried by the coax connector; RF, composite video, SDI and antenna/cable-TV feeds require different equipment.
A Coax Connector Does Not Identify the Signal
| Source label or behavior | Likely path | Required first stage |
|---|---|---|
| RF OUT, TV OUT, channel 3/4 | Modulated analog TV channel | Matching analog tuner/demodulator |
| Antenna or cable-TV feed | Broadcast/cable television channels | Tuner compatible with the local format/service |
| Composite video on BNC/RCA | Baseband analog video | Composite-to-HDMI converter, not an RF tuner |
| SDI on BNC | Professional digital video | SDI-to-HDMI converter |
If the source manual does not identify the output, do not buy from connector shape alone. The coaxial-to-HDMI signal guide provides a broader connector-versus-signal decision path.
RF Conversion Requires Active Electronics
For a channel 3/4 source, choose a converter with an analog tuner/demodulator compatible with the source’s television system and audio format, plus an HDMI output supported by the display. Some workflows use two devices: an RF demodulator that produces composite video/audio, followed by a composite-to-HDMI scaler. Confirm power supplies and connector adapters for every stage.
If you need the opposite direction—one HDMI source distributed over an RF channel—use the HDMI-to-coaxial adapter guide. Direction matters; the two device types are not reversible.
Tune the Source Channel Before Selecting HDMI Resolution
- Connect the RF output to the tuner/demodulator input.
- Set the legacy source and converter to the same channel or television format.
- Connect the converter HDMI output directly to the display.
- Select the correct HDMI input on the display.
- Start with a common supported output resolution, then adjust aspect ratio and overscan.
- Record channel, format, audio and HDMI output settings after a stable result.
A Converter Cannot Restore Missing Source Detail

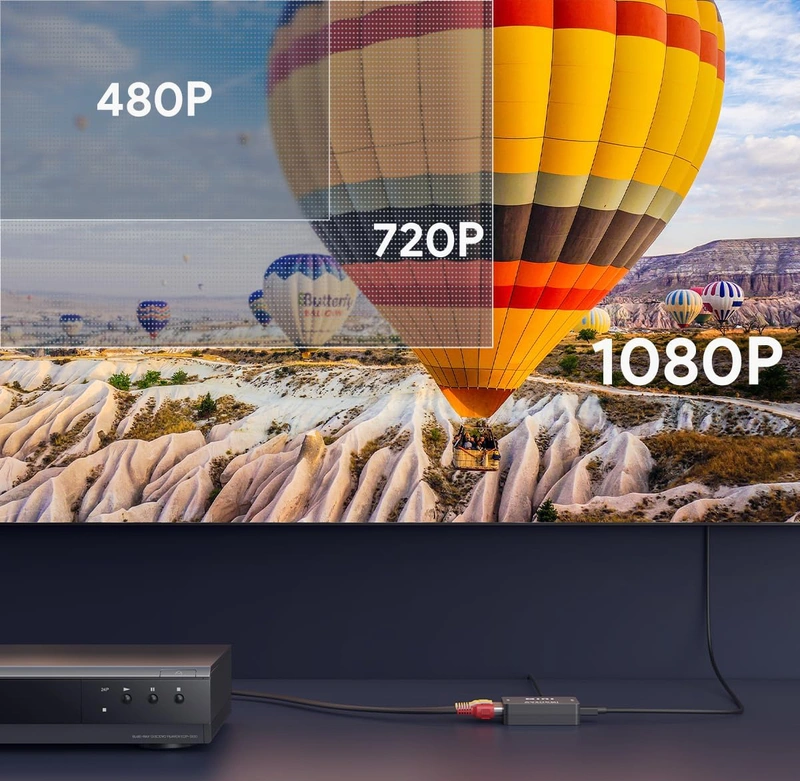

Scaling can make a standard-definition picture compatible with a modern display, but it cannot create detail that was never in the RF source. Expect softness, noise or aspect-ratio differences from old tapes and modulators. Judge the converter by stable tuning, correct color, synchronized sound and predictable startup rather than a generic “4K output” label.
If There Is No Picture or Sound
- Confirm the source actually outputs RF rather than composite or SDI.
- Match channel 3/4 or the required analog TV standard.
- Test the legacy source on a known-compatible tuner when possible.
- Connect the converter directly to the display and remove switches.
- Try another supported HDMI output setting.
- Check whether audio uses the same RF standard and whether the converter exposes a separate audio output.
