USB-C Charger Guide: Wattage, PD Profiles and Multi-Port Power

Choose a USB-C charger by the device’s required wattage and USB Power Delivery profiles, not by the connector alone. For one phone, a compact single-port charger may be enough. For a laptop or several devices, verify each port’s output and the power-sharing table, then pair it with a cable rated for the required power.

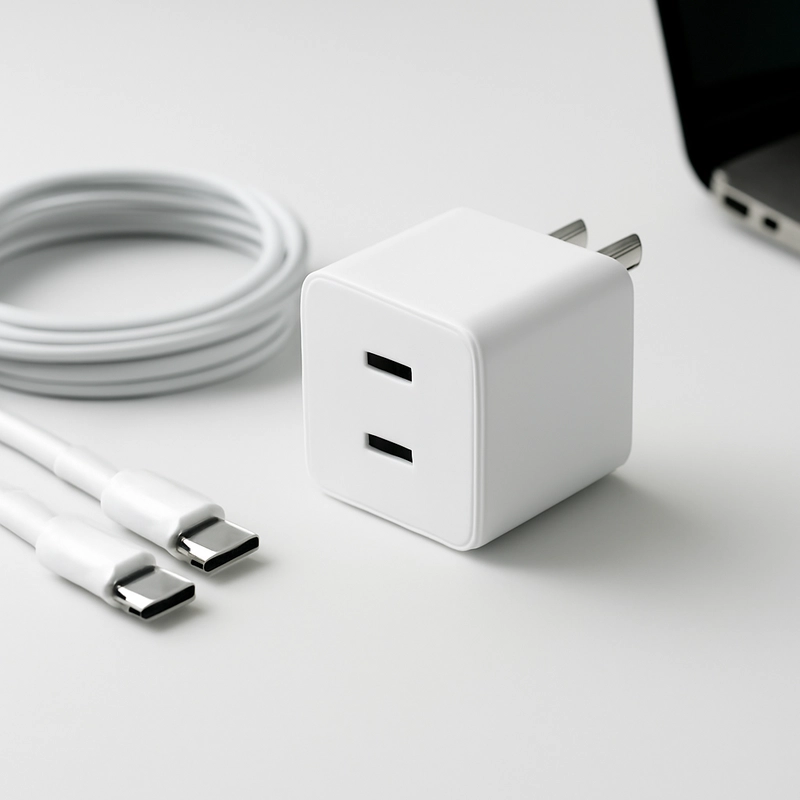

USB-C wall charger with Type-C output ports

Start with the Device’s Required Input

USB-C describes the connector, not a fixed charging speed. Check the phone, tablet or laptop manual for its supported charging input. Buying a charger with a larger maximum number does not force that power into the device; compatible USB Power Delivery products negotiate an operating level.

Use caseWhat to verifyCommon mistake
PhoneRequired fast-charge protocol and single-port outputChoosing only by the largest wattage on the box
TabletUSB PD voltage/current profile and cableUsing an old low-power adapter
LaptopDevice input requirement and charger’s USB-C port profileAssuming every USB-C port can power a notebook
Several devicesPer-port allocation with all intended ports occupiedReading total wattage as per-port wattage

USB Power Delivery Profiles Matter More Than One Headline Number

USB-IF describes USB Power Delivery as a negotiated system with flexible voltage and power levels. A charger’s specification should list the fixed or adjustable profiles available on each port. A device can only use a mode supported by the charger, device and cable path.

For notebook-specific selection, see the USB-C computer-charger guide.

Multi-Port Chargers Redistribute Power

A charger advertised with a total output may reduce one port when another device is connected. Read the combination table for C1, C2 and any USB-A port. If a laptop must keep charging while a phone is added, validate that exact two-device allocation rather than relying on the total printed wattage.

Also check whether unplugging or adding a device briefly renegotiates the remaining ports. A momentary interruption can be normal for some multi-port designs, but it matters for equipment that must remain continuously powered. The product specification should describe the intended allocation behavior.

Match Cable Power and Data Separately

The cable must support the required current and power range, but charging capability does not automatically prove a high data rate or video support. Current USB-IF guidance uses separate power and performance markings. The USB-C cable guide explains these dimensions.

If USB-C Charging Is Slow or Intermittent

  1. Connect one device to the charger’s highest-capability USB-C port.
  2. Use a short known-good cable rated for the required power.
  3. Check whether another occupied port changes the allocation.
  4. Confirm the device’s battery temperature and charge-management limits.
  5. Replace accessories with loose plugs, exposed conductors, scorching or repeated connection loss.
