Specify a USB 3 cable by the exact connector pair, tested data rate, required power, length and use case. “USB 3,” USB-C and charging watts are separate dimensions: a connector shape does not prove data speed, video support or power capability. OEM approval should test the complete host–cable–device link at the final production length.
A Useful USB Cable Specification Needs More Than “USB 3”

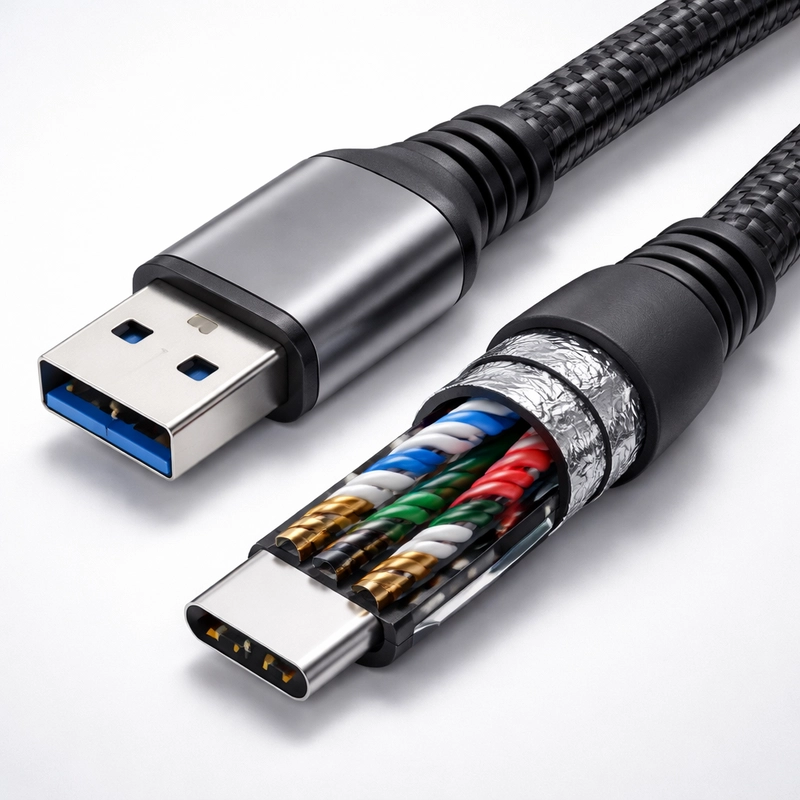

Start with the two connector ends: USB Type-A, USB Type-C or a device-specific connector. Then state the required data performance in Gbps, the final length, charging requirement and whether the product must support video or another Alternate Mode. This prevents a purchasing shorthand from becoming an unsupported all-in-one claim.
| Requirement | Contract field | Approval evidence |
|---|---|---|
| Physical fit | Connector at each end, orientation, shell and overmold | Fit check with final devices and enclosure |
| Data | Exact required Gbps and protocol path | Transfer and error test on the final host–device pair |
| Power | Required volts, amps and watts | Negotiation/profile check and voltage-drop measurement |
| Video | Required Alt Mode and display mode | Exact source, cable, dock and display test |
| Length | Finished cable length and tolerance | Test the longest production-approved sample |
The USB data-transfer cable guide explains how connector shape and transfer capability differ for general users.
Data Rate, Power and Video Are Independent Capabilities
A USB-C connector may be used on cables with different data and power capabilities. A high charging rating does not prove a high data rate, and a fast data cable does not automatically support every display path. Use the current USB-IF performance and power markings where applicable, but verify the exact certified product record rather than relying on a copied logo in artwork.
For a concrete connector example, the USB-A to USB-C data cable guide covers the limits of that specific link without treating it as equivalent to USB-C to USB-C.
Cable Length Changes the Validation Requirement
There is no useful universal “USB 3 cable length” that proves every construction and rate. Higher data rates leave less signal margin, while conductor size, shielding, connector loss and the host/device implementation also affect the result. Approve the exact length required for production; do not qualify a longer SKU from a passing short sample.
| Sample condition | Test | Record |
|---|---|---|
| Shortest and longest approved lengths | Data transfer and error behavior | Host, device, port, file/test method and result |
| Maximum intended charging load | Negotiated profile and voltage drop | Input/output readings, cable temperature and duration |
| Final enclosure or dock | Fit, retention and movement | Connector seating and intermittent-disconnect observations |
| Pre-production sample | Visual and dimensional inspection | Length, overmold, labeling and packaging revision |
Validate the Complete Use Case
- Define the exact host, port, operating mode and peripheral.
- Test the required data rate with a repeatable workload and record errors or disconnects.
- Measure charging separately at the intended load and duration.
- Test any promised display mode through the actual dock or adapter.
- Repeat on the longest approved length and after the agreed mechanical-conditioning method.
- Freeze the sample, specification revision and packaging claim together.
How Delivery Checks Protect the Approved Sample
A delivery check can compare connector dimensions, finished length, labeling, continuity and a representative functional sample. It should also identify critical defects such as wrong wiring, unstable data, exposed conductors or a false performance mark. Certification and durability claims require their own records; they cannot be inferred from appearance or one transfer test.
