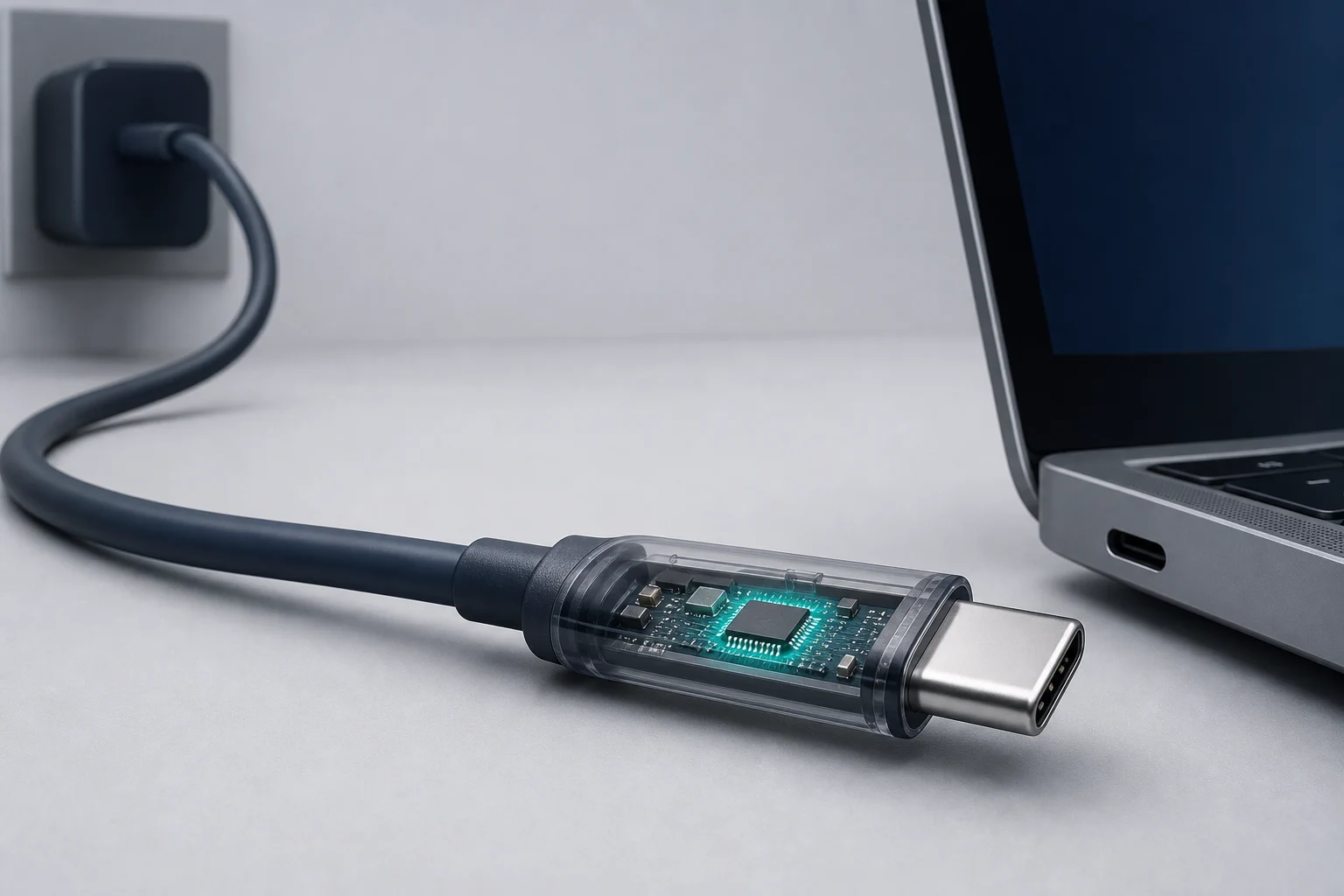

A USB-C e-marker is the cable’s electronic identity component. In an electronically marked cable, it can report declared characteristics such as the cable’s current-carrying capability and signal performance when compatible USB Power Delivery equipment asks for that identity. It does not make a charger more powerful, add a data mode to a port, or guarantee video support.
That distinction matters because the USB-C connector describes a shape and connection system, not one universal feature set. Two USB-C cables can look alike while supporting different power and data capabilities. An e-marker helps the connected equipment identify the cable, but the final result still depends on the source, cable, receiving device and each port’s implementation.
How cable identity fits into a USB-C connection
The current USB Type-C Cable and Connector Specification defines the cable and connector behavior behind this process. At a practical level, a higher-capability connection follows four separate checks:
- Physical connection: the source and receiving device detect the USB-C attachment and orientation.
- Cable identity: when required, the system queries the electronically marked cable for its declared characteristics.
- Power agreement: the source and receiving device agree on a power level that the complete connection can support.
- Data or video setup: the two ports establish a supported data protocol or alternate mode separately from the power agreement.
The e-marker participates in cable identification. It is not the decision-maker for the entire connection. A 5 A cable cannot make a 45 W charger deliver 100 W, and a high-power cable cannot give a phone or laptop a data or display mode that its port does not implement.
What an e-marker can report—and what it cannot prove
| Question | What cable identity can help establish | What still needs separate evidence |
|---|---|---|
| Power | The cable’s declared current and power category | The charger’s offered profiles, the device’s accepted profiles and port-sharing limits |
| Data | The cable’s declared signal capability where applicable | The data standard implemented by both connected ports |
| Video | Relevant cable characteristics for a supported link | Alternate-mode support in the source device, adapter or display |
| Certification | An identity response that can be compared with the specification | A valid certification listing and authorized use of the applicable logo |
An e-marker reader is therefore useful for inspection, but its result is not a complete acceptance test. It reads what the cable reports. It does not independently prove conductor size, signal integrity, thermal behavior, connector durability or certification status.
When does a USB-C cable need electronic marking?
Under the USB Type-C cable model, full-featured Type-C cables and cables designed to carry more than 3 A are electronically marked. A USB 2.0 Type-C cable rated for no more than 3 A may be a simpler cable, so the absence of an e-marker is not automatically a defect in every USB-C cable.
| Cable claim | Electronic marking expectation | Buyer follow-up |
|---|---|---|
| USB 2.0 and up to 3 A | May be unmarked, depending on the exact cable design | Confirm the intended power rating and required labeling |
| More than 3 A | Electronic marking is required | Read cable identity and verify the electrical design against the approved specification |
| Full-featured high-speed cable | Electronic marking is required | Verify the exact data rate, cable length and host/device support |
| 240 W claim | Requires the appropriate 240 W cable implementation | Check the cable marking, identity, source and receiving-device support together |
If your main question is the difference between 60 W and 240 W cable categories, the 240 W USB-C cable guide covers that EPR decision in more detail.
Use four separate checks before approving a cable
The most reliable way to evaluate a USB-C cable is to avoid one-word conclusions such as “fast,” “full-featured” or “compatible.” Record four dimensions instead.
1. Power rating
Define the required wattage and current, then confirm the source and receiving device can negotiate the same range. If a multi-port charger is involved, record whether its available power changes when another port is used.
2. Data rate
State the required data standard explicitly. A cable selected only for charging may use USB 2.0 data, while another cable with the same connector may support a much higher signaling rate. Power rating is not a shortcut for data performance.
3. Video or alternate mode
Confirm that the source port, cable path and destination all support the intended display mode. A USB-C port can be designed for charging and data without supporting video output.
4. Certification and marking evidence
The USB-IF cable compliance program uses defined power and, where applicable, data-rate markings for certified USB-C to USB-C cables. A printed logo should be checked against the applicable program and listing; it should not be treated as proof merely because it appears on a plug or package.
What to request with an OEM cable sample
A useful sample package connects the commercial specification to evidence that can be reviewed. Ask the supplier to identify:
- the exact cable length, connector configuration and construction revision;
- the declared current and power category;
- the declared data standard and whether video support is in scope;
- the e-marker identity record when electronic marking is required;
- the certification listing or test evidence claimed for that exact construction; and
- the change-control rule that links the approved sample to production.
Then test the complete use case with the intended source and receiving devices. A protocol analyzer or cable tester can add evidence, but its reading should be tied to the exact sample and test conditions rather than generalized to every cable in the family.
Frequently asked questions
Does every USB-C cable have an e-marker?
No. A simpler USB 2.0 Type-C cable designed for no more than 3 A may not need one. Full-featured cables and cables rated above 3 A do.
Does an e-marker mean the cable is USB-IF certified?
No. Electronic marking is a cable-design requirement for particular cable categories. Certification requires the applicable compliance process and a verifiable product listing.
Can an e-marker make charging faster?
It can allow compatible equipment to identify a cable that is designed for a higher-capability power contract. It cannot make the source offer, or the receiving device accept, power that those products do not support.
Define the complete requirement, not just the connector
For an OEM cable project, specify the receiving devices, charger profiles, required power, data rate, video requirement, cable length, target market and evidence package before selecting a construction. You can review the USB-C to USB-C fast-charging cable category and send those requirements for a feasibility discussion. A matching model, rating or certification should be confirmed against the exact proposed cable before approval.
