VCONN is a small USB-C power supply for electronics inside certain cables. It is separate from VBUS, the main rail that powers or charges the connected device. After the port detects plug orientation, the configuration-channel contact that is not carrying the active CC connection can be used to feed VCONN to an electronically marked or active cable.
What VCONN does in a USB-C connection
A USB-C connection has to determine attachment, orientation and power roles before optional functions can be used. One CC path becomes the active configuration channel between the two ports. On a cable that indicates a need for cable electronics power, the other contact can become VCONN.
That distinction matters because a connector can be physically reversible while its control paths still have defined jobs. VCONN does not carry the laptop-charging load and it does not make the data lanes faster. Its job is narrower: provide operating power to electronics that live in the cable assembly.
| Path | Primary responsibility | What it does not prove |
|---|---|---|
| VBUS | Delivers the negotiated bus power between source and sink | It does not identify cable data capability by itself |
| CC | Detects attachment and orientation, establishes roles and carries USB PD communication | It is not the main device-power conductor |
| VCONN | Powers supported electronics in an electronically marked or active cable | It does not certify the cable or guarantee a particular mode |
| High-speed data pairs | Carry the data or alternate-mode signals supported by the complete link | Their presence alone does not prove the host and device support the same mode |
Which cable electronics may need VCONN

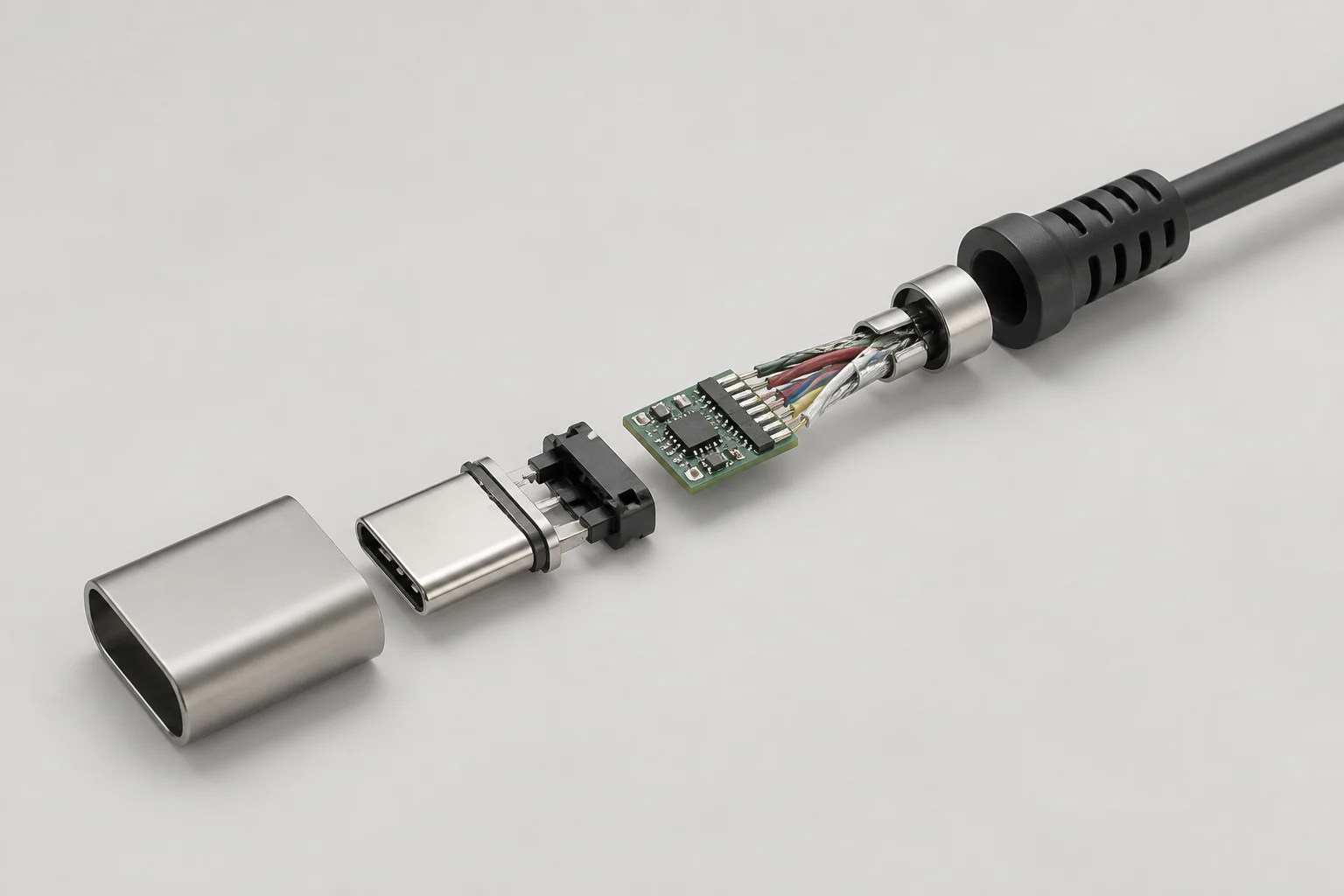

An electronically marked cable contains an element that can answer USB PD identity requests with defined cable characteristics. Some active cables also contain signal-conditioning electronics. These are cable-side functions, so they need a local source of operating power. VCONN is the intended supply path in the Type-C architecture for supported implementations.
The presence of an e-marker should be interpreted carefully. The marker can report characteristics, but it is not a substitute for checking the cable specification, declared current, data mode, construction, length and compliance evidence. The existing USB-C E-Marker explainer covers what that identity information means; VCONN answers the separate question of how the cable-side electronics are powered.
VCONN is not VBUS—and it is not a charging mode
VBUS is sized and negotiated for the connected equipment. VCONN has a much smaller, cable-focused role. Calling VCONN “extra charging power” blurs this boundary and can lead to the wrong purchasing requirement. A cable may require VCONN because it is electronically marked or active, while the attached device still receives its power through VBUS.
It is also useful to separate VCONN from USB Power Delivery profiles. A PD contract defines how source and sink exchange power on VBUS. VCONN availability supports cable electronics and communication, but it does not select a voltage profile for the device. These functions cooperate without becoming the same thing.
Compatibility belongs to the complete port-cable-device chain
A VCONN-dependent cable only works as intended when the source port, cable and attached equipment agree on the relevant Type-C and USB PD behavior. That is why a symptom should not be assigned to the cable from appearance alone. Port controller policy, plug orientation, connector wear, contamination, cable electronics and endpoint support can produce similar outcomes.
- Source port: confirm that the port supports the required USB-C and USB PD functions rather than only the connector shape.
- Cable: record passive or active construction, current rating, supported data mode, length and electronic marking.
- Attached device: confirm its power, data and alternate-mode requirements independently.
- System behavior: test both plug orientations and a known-good comparison cable without changing several variables at once.
How to diagnose a suspected VCONN or cable-electronics issue
Start with the observable function that is failing: attachment, charging, data, video or operation in only one orientation. Then reduce the system to one direct source-to-device connection. Remove docks, extension cables and adapters unless they are the item being evaluated.
- Record the exact source port, device, cable and requested function.
- Confirm the same endpoints work with a known-good cable that is specified for that function.
- Rotate each reversible plug independently and note whether the symptom follows one connector end.
- Check the connector for damage or debris and stop if a plug is loose, deformed or unusually hot.
- If the issue follows one cable, verify its declared construction and identity rather than assuming that VCONN alone is the root cause.
This sequence is deliberately diagnostic, not a field repair procedure. Cable plug electronics and Type-C controller behavior are not safely verified by opening a finished cable or applying power to individual contacts.
What to put in a USB-C cable requirement
For sourcing, treat VCONN as one system requirement among several. State the connector arrangement, required VBUS current and power, data mode, passive or active construction, cable length, target hosts and devices, and the evidence expected for the declared capability. If an e-marker or active electronics are required, ask how the cable identifies itself and which implementation evidence will be supplied.
