A single-coil charger concentrates the design around one defined sweet spot; a multi-coil charger can offer a larger or more flexible placement area by selecting among overlapping transmitter coils. More coils do not automatically mean faster charging. Coil geometry, receiver coupling, control strategy, shielding, enclosure, input power, thermal design and protocol behavior determine the result.
What changes when a charger adds coils

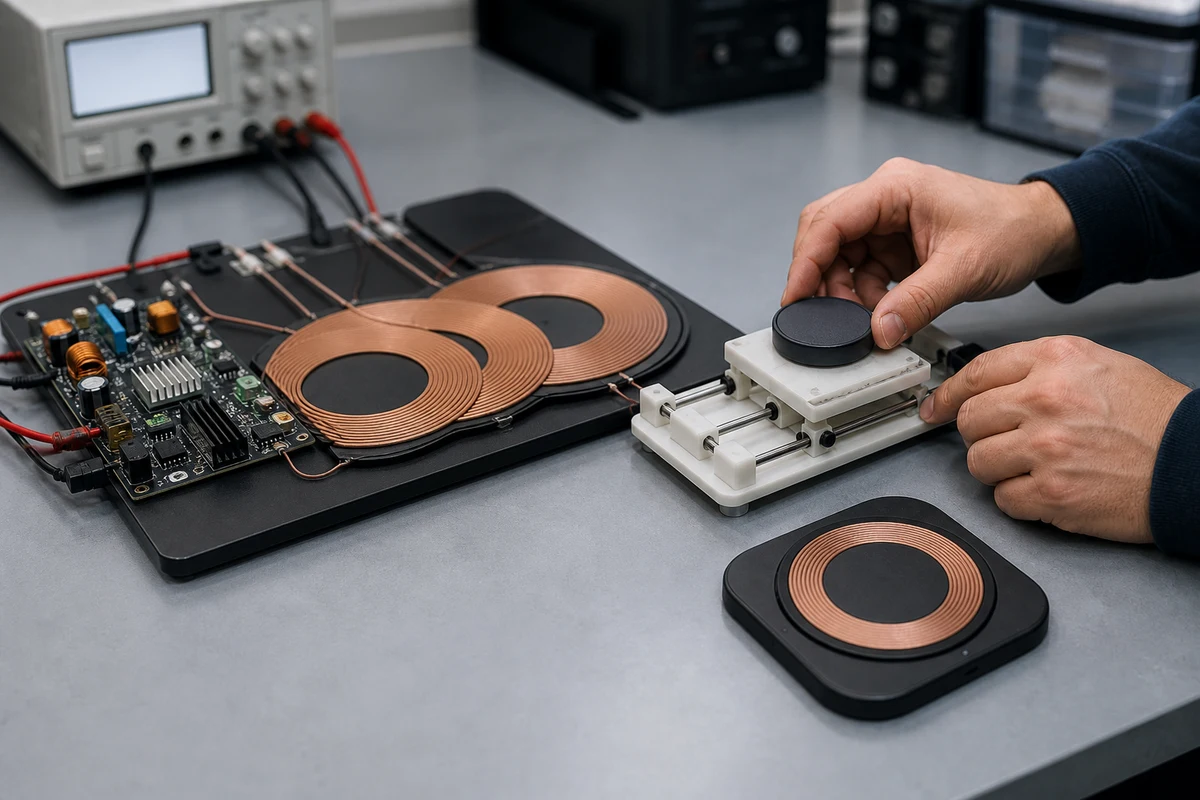

In a single-coil pad, the mechanical design guides the receiver toward one transmitter coil. A multi-coil product places two or more coils so their useful regions overlap or cover different device positions. Texas Instruments’ overview of multi-coil wireless power designs describes multi-coil control as a way to accommodate variation in receiver orientation and alignment.
The controller still has to identify a viable coupling position and energize the intended coil or coil group according to its design. Unused coils are not free: they add components, copper, switching paths, sensing, mechanical constraints and validation cases. The product may gain placement convenience while becoming harder to tune and keep thermally uniform.
Architecture comparison
| Decision dimension | Single-coil design | Multi-coil design |
|---|---|---|
| Placement | Usually one smaller target zone; mechanical guides can make it obvious. | Can provide overlapping or multiple valid zones when the controller selects them correctly. |
| Control | Fewer coil-selection states and a simpler electrical path. | Needs coil detection/selection logic and transition behavior across positions. |
| Components | One transmitter coil and its associated drive/sense path. | Additional coils, switching and sensing can increase size and bill of materials. |
| Thermal map | A concentrated operating area that is easier to define, though not automatically cool. | More positions and active paths must be checked for local hotspots and repeatability. |
| Mechanical design | Phone stop, stand angle or magnet/alignment feature can center the receiver. | Coil overlap, enclosure thickness and receiver position all influence the usable envelope. |
| Evidence | Validate the target receiver at the intended center and realistic offsets. | Map every claimed placement zone, boundary and coil transition with the exact receiver set. |
Coupling depends on more than coil count
The transmitter and receiver form a coupled magnetic system. TI’s bq500211 documentation lists distance, alignment, coil dimensions, materials, turns, shielding and matching among the factors that affect coupling. This is why a well-guided single-coil stand can feel more reliable than a poorly implemented multi-coil pad.
Enclosure thickness and camera bumps can tilt or lift a phone. A case can change distance; magnets or metal features can change the observed system response; a large receiver may bridge regions differently from a small receiver. The general inductive charging guide owns the basic energy-transfer explanation. Here the design question is whether the exact mechanical stack creates a repeatable usable position.
Multi-coil does not mean every coil is always active
Many multi-coil transmitters search or select a coil based on the receiver response. The exact scan order, selection threshold, handover behavior and retry policy are implementation-specific. Do not describe a product as “charging from all coils” unless the actual controller design and evidence support that statement.
A receiver moved across two overlapping regions may interrupt, renegotiate or continue, depending on the implementation. The useful requirement is observable: define the positions where charging must start, remain stable and recover after movement. Then record which test receiver, case, adapter, firmware and input supply were used.
Choose the architecture from the use case
- Compact puck or travel pad: one coil may fit the space and cost target if alignment is clear.
- Upright stand: one or more coils may be needed to cover different receiver heights; the phone stop and angle matter as much as count.
- Wide desktop pad: multiple coils can expand the placement envelope, but every claimed zone needs thermal and charging validation.
- Automotive console: vibration, phone movement, enclosure stack and ambient temperature make retention and coverage evidence critical.
- Multi-device surface: distinguish multiple placement zones from simultaneous multi-device power. They are not the same feature.
A repeatable placement-envelope test
- Freeze the charger, firmware, adapter, cable, receiver, case and battery-state range.
- Mark a physical grid on the charging surface without altering normal spacing.
- Verify a known central position, then move the receiver in repeatable increments across the claimed area.
- At each position, record start behavior, stable transfer, user indication, interruption and recovery after movement.
- Repeat with the target receiver sizes, camera bumps and approved cases instead of one reference phone.
- Check surface and component temperatures using one documented method and defined stop conditions; do not compare unlike methods.
- Repeat across samples and after changes to coils, shielding, enclosure, firmware or input supply.
Common comparison mistakes
- Using coil count as a proxy for watts, efficiency or certification.
- Showing one center-position charge as proof of the entire surface.
- Ignoring the phone’s receiver location and camera-bump height.
- Calling several coils “simultaneous charging” without defining the number of receivers.
- Publishing one thermal image without ambient, duration, load and measurement position.
- Approving an electronics sample before the final enclosure and shielding are installed.
Turn convenience into a testable requirement
Specify the receiver set, cases, valid placement area, start/recovery behavior, input supply, operating environment and evidence format. Then review the wireless charger category as a route to relevant form factors. The category does not prove coil count, charging power, certification or placement coverage for every model; request the exact configuration record.
