20W Dual Port Fast Charger for Mobile Devices
Use this product page to shortlist the model, then send quantity, target market, logo and packaging needs for factory MOQ, sampling plan and quote confirmation.

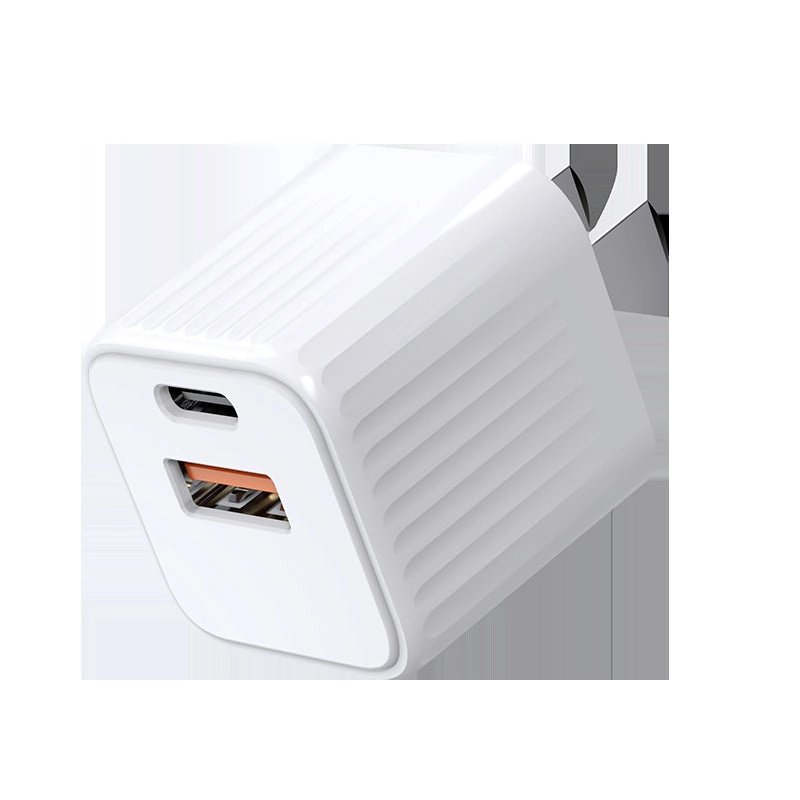

The PO18A+C is a 20W wall charger with one USB-A output and one USB-C output. Regional shell dimensions are intended for China, US, Australia, Korea and the UK, while the 100–240V input supports multi-market OEM/ODM planning.
Product Specifications
| Specification | Product detail |
|---|---|
| Model | PO18A+C |
| USB-A Output | 5V/3A, 9V/2A or 12V/1.5A |
| USB-C Output | 5V/3A, 9V/2.22A or 12V/1.66A |
| Combined Total Output | 5V/3A maximum |
| Input | 100–240V, 50/60Hz, 0.4A maximum |
| Maximum Power | 20W |
| Material | PC fireproof shell; confirm flammability grade and report |
| Regional Shell Sizes | China/US 29.09 × 31 × 31.91mm; Australia 24.9 × 38.6 × 38.6mm; Korea 37 × 30 × 32mm; UK 30.8 × 39.3 × 47.9mm |
Single-Port and Shared Charging
The 20W USB-C charger and USB-A profiles must be mapped to supported protocols, while shared output is capped at 5V/3A. The 20W fast charger label does not mean each port supplies 20W simultaneously.
Regional Plug Details
Confirm the actual plug drawing for each shell, protections, efficiency, standby power, temperature, flame rating and country-specific certificates. Regional dimensions alone do not establish regulatory compliance.
OEM/ODM Inquiry
Share target markets, devices, protocols, quantity, branding and packaging.
How to evaluate PO18A+C power adapter
The PO18A+C power adapter configuration gives buyers evaluating 20W wall charger a clear specification built around model: PO18A+C; USB-A output: 5V/3A, 9V/2A or 12V/1.5A; USB-C output: 5V/3A, 9V/2.22A or 12V/1.66A. Compare these details with the target devices, operating scenario and final order specification. Use the same model and specification when comparing quotations for 20W USB-C charger.
Buyer decision points
- Model: PO18A+C
- USB-A Output: 5V/3A, 9V/2A or 12V/1.5A
- USB-C Output: 5V/3A, 9V/2.22A or 12V/1.66A
- Input: 100–240V, 50/60Hz, 0.4A maximum
- RFQ scope: Include destination plug, input range, required port profiles, single- and multi-port use, target devices, bundled cable, quantity, branding and packaging.
Buyer FAQs for this configuration
How does output change when more than one port is used on PO18A+C power adapter?
USB-C: 5V/3A, 9V/2.22A or 12V/1.66A. USB-A: 5V/3A, 9V/2A or 12V/1.5A. Combined use: 5V/3A maximum. Specify the intended port combination because the largest single-port value should not be applied to simultaneous charging.
During quotation review, which market input and plug should be confirmed for the PO18A+C configuration?
The input specification is 100–240V, 50/60Hz, 0.4A maximum. Match the destination plug, mains range, labeling and required market documents to the exact quoted version.
For model selection, how do the model and USB-A output define the PO18A+C configuration?
This model combines model (PO18A+C) with USB-A output (5V/3A, 9V/2A or 12V/1.5A). Keep both values together when comparing this configuration with another model.
