USB4 Cable for OEM/ODM Solutions: 240W PD 3.1 EPR and 40Gbps Data Transfer
Use this product page to shortlist the model, then send quantity, target market, logo and packaging needs for factory MOQ, sampling plan and quote confirmation.

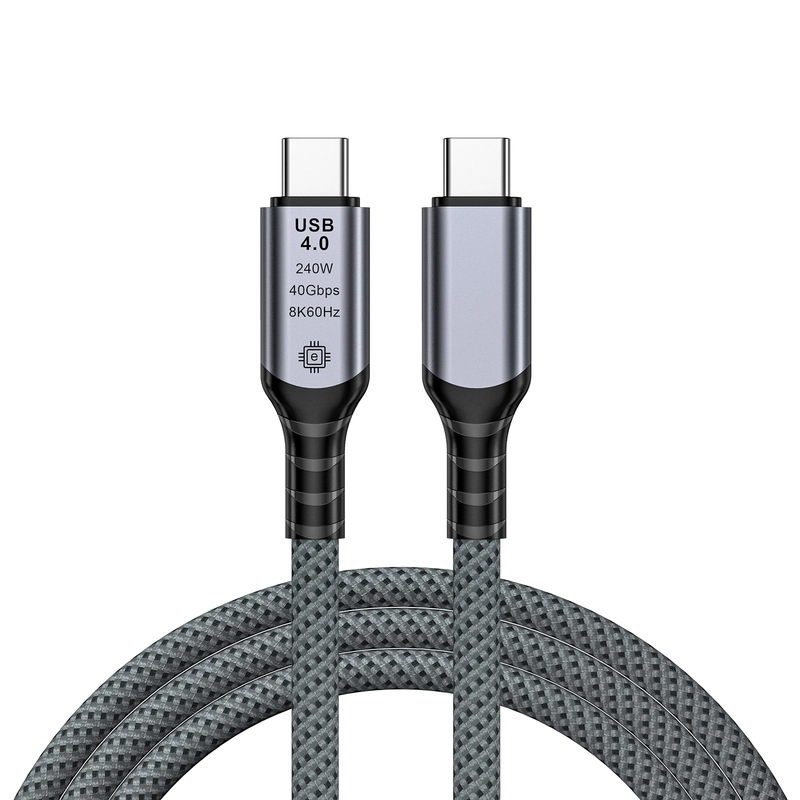

This USB4 cable 40Gbps model uses USB-C connectors and is for USB4 data, USB PD 3.1 EPR charging up to 240W and video output up to 8K/60Hz. Four lengths from 0.3m to 2m are available for OEM/ODM high-performance cable programs.
Product Specifications
| Specification | Product detail |
|---|---|
| Connector Type | USB-C to USB-C |
| Data | USB4, up to 40Gbps |
| Charging | USB PD 3.1 EPR, up to 240W |
| Video | Up to 8K at 60Hz |
| Construction | Aluminium-alloy shells and grey-blue grid braid |
| Internal Design | E-Marker and twisted-pair cabling |
| Length / Approximate Weight | 0.3m / 20g; 0.5m / 26g; 1m / 50g; 2m / 80g |
| MOQ | 1,000 pieces |
240W and 40Gbps Details
A USB4 40Gbps cable may require different construction and test results by length. Confirm USB-IF/USB4 identity, 48V/5A PD 3.1 EPR profiles, E-Marker, connector temperature and 40Gbps signal test for each version. The USB4 cable 2m build should not inherit a shorter-cable result without evidence.
Video and Compatibility
For a USB4 cable, 8K output, dual displays and Thunderbolt compatibility depend on the source, dock/display, supported alternate mode and certification. A claim covering every USB-C device is not appropriate because some ports support only charging or slower data.
OEM/ODM Inquiry
Share target hosts/devices, power/data/video modes, length mix, quantity, branding and packaging.
When to shortlist USB4 Cable: 240W PD 3.1 EPR and 40Gbps Data Transfer
In usb4 cable 40gbps sourcing, the practical fit of USB4 Cable: 240W PD 3.1 EPR and 40Gbps Data Transfer depends on connector type: USB-C to USB-C; data: USB4, up to 40Gbps; charging: USB PD 3.1 EPR, up to 240W. Compare those product details with the intended application instead of selecting on the headline name alone.
Buyer decision points
- Connector Type: USB-C to USB-C
- Data: USB4, up to 40Gbps
- Charging: USB PD 3.1 EPR, up to 240W
- Video: Up to 8K at 60Hz
- RFQ scope: Include connector at each end, required charging power, data or video function, finished length, target devices, quantity, branding and packaging.
Buyer FAQs for this configuration
What must be tested before using USB4 Cable: 240W PD 3.1 EPR and 40Gbps Data Transfer for the requested video mode?
The cable specification includes Up to 8K at 60Hz. Confirm the source connector, display connector, direction, final length, resolution and refresh rate as one complete link. The source device, adapter or dock and display must all support the requested mode.
Does the headline USB-C power rating of the USB4: 240W PD 3.1 EPR and 40Gbps Data Transfer configuration also define its data and video capability?
No. The charging specification is USB PD 3.1 EPR, up to 240W. The data specification is USB4, up to 40Gbps. The video specification is Up to 8K at 60Hz. Power, data, video, cable length and E-marker requirements should be checked as separate fields for the exact cable.
In a sample review, which connection direction should be matched for the USB4: 240W PD 3.1 EPR and 40Gbps Data Transfer configuration?
The specified connection is USB-C to USB-C. Use the intended host, charger, accessory or display to verify direction and function; two matching connector shapes can still support different capabilities.
